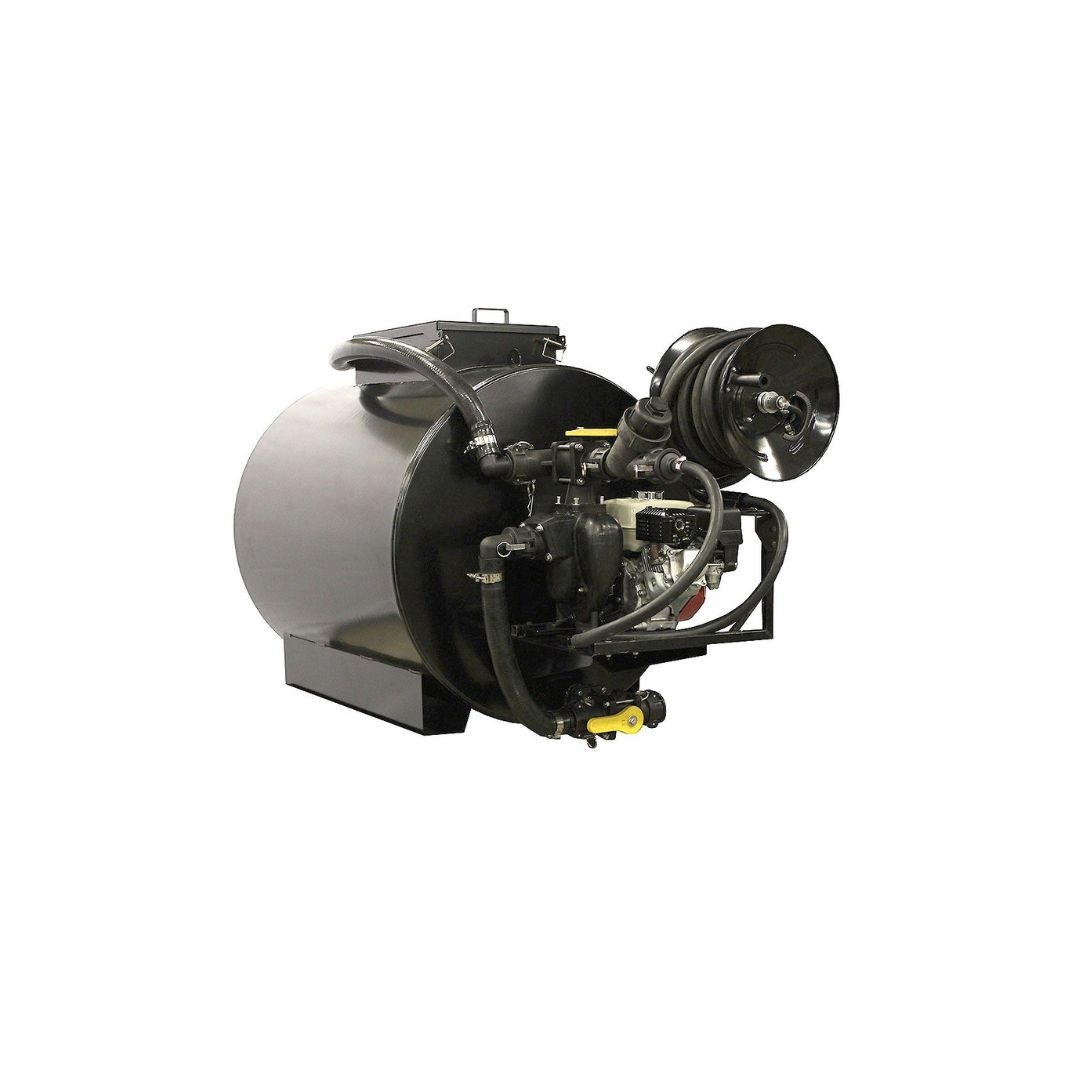

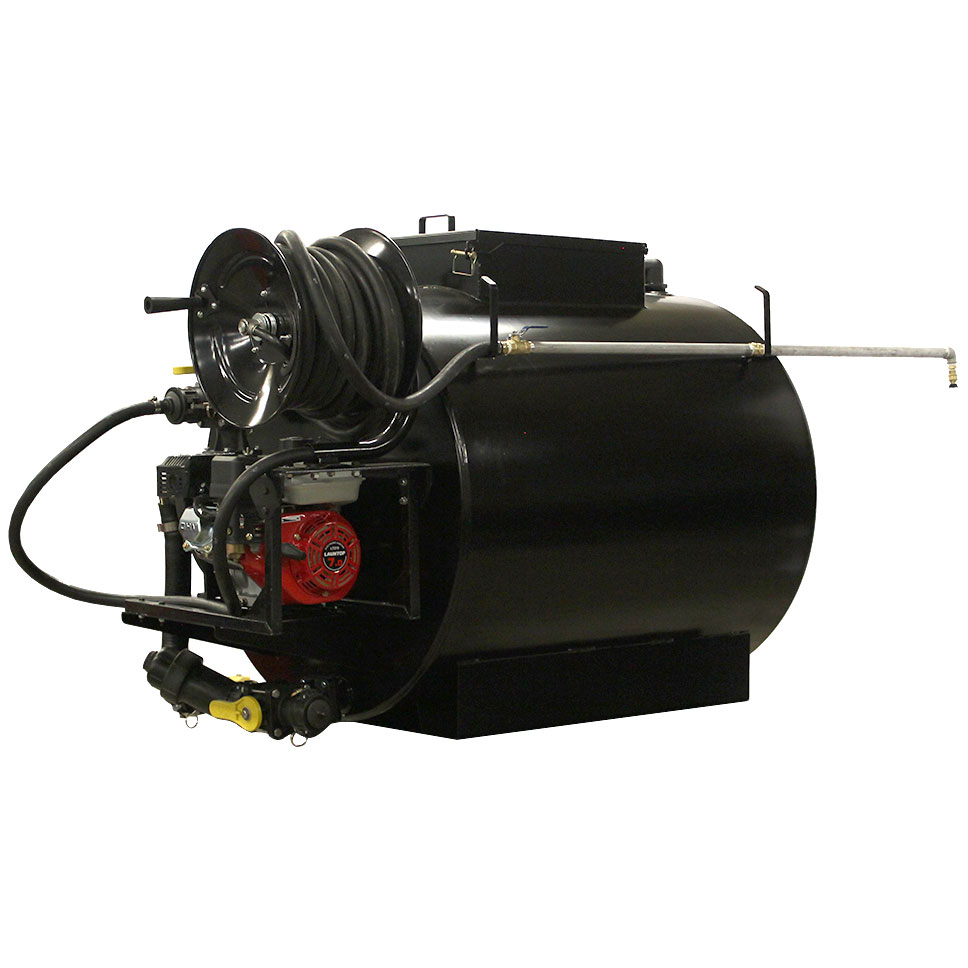

AK230 Pro Sealcoat Sprayer

AK230 Pro Sealcoat Sprayer – 230-Gallon Asphalt Sealing Machine for Contractors Ready to Scale

Need more output without overcomplicating your workflow? The AK230 Pro Sealcoat Sprayer is your go-to rig. With a 230-gallon tank, a reliable Honda GX160 engine, and a high-performance cast iron pump, this system is built to spray 23,000 sq ft per fill—fast, clean, and without constant refills.

• Sprays up to 23,000 sq ft per tank – fewer stops, more jobs
• 230-gallon powder-coated steel tank for long-term durability
• Includes hose reel, filter kit, transfer kit, and spray tips

This complete system is ready for commercial sealcoating—driveways, parking lots, HOA properties, and more. With pro-level add-ons already included, you’ll save time, reduce downtime, and earn more per day.

• Honda GX160 engine – proven jobsite performance
• Cast iron pump with Viton/Tungsten seals
• Contractor-ready for daily use

Loaded with Features

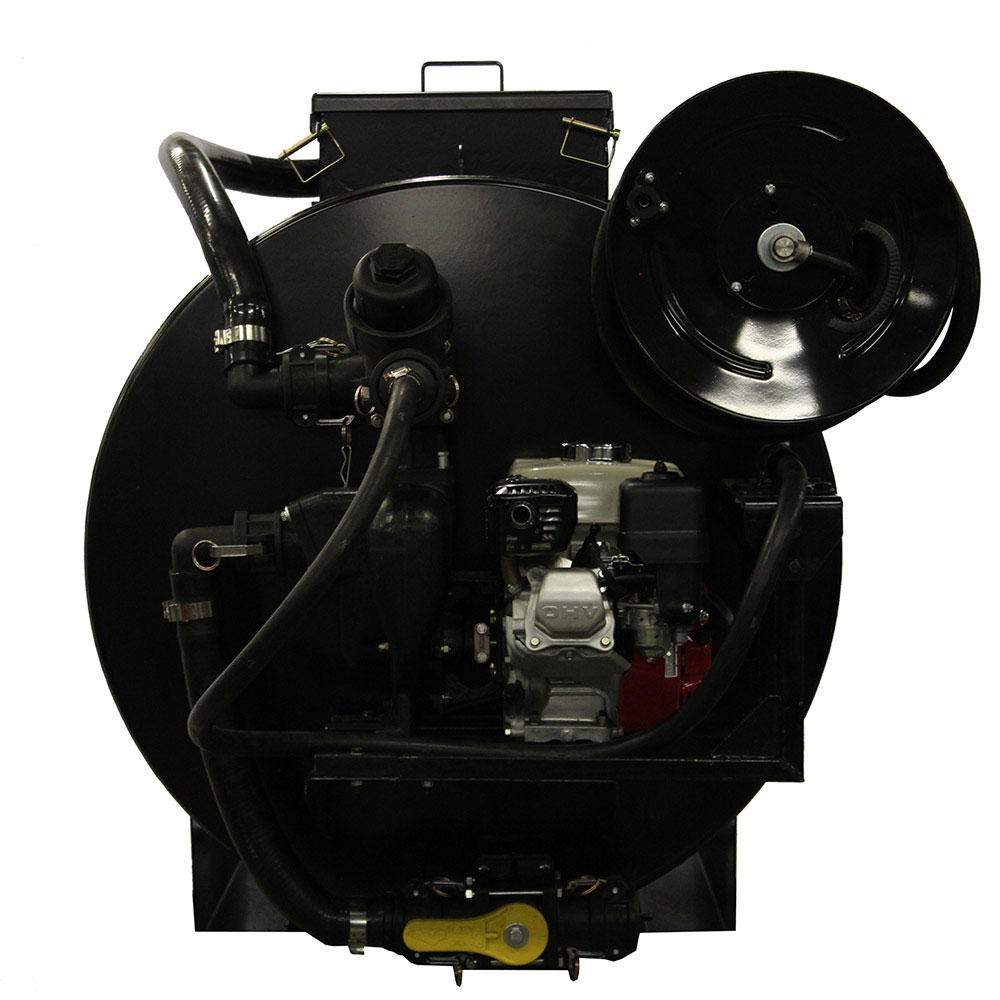

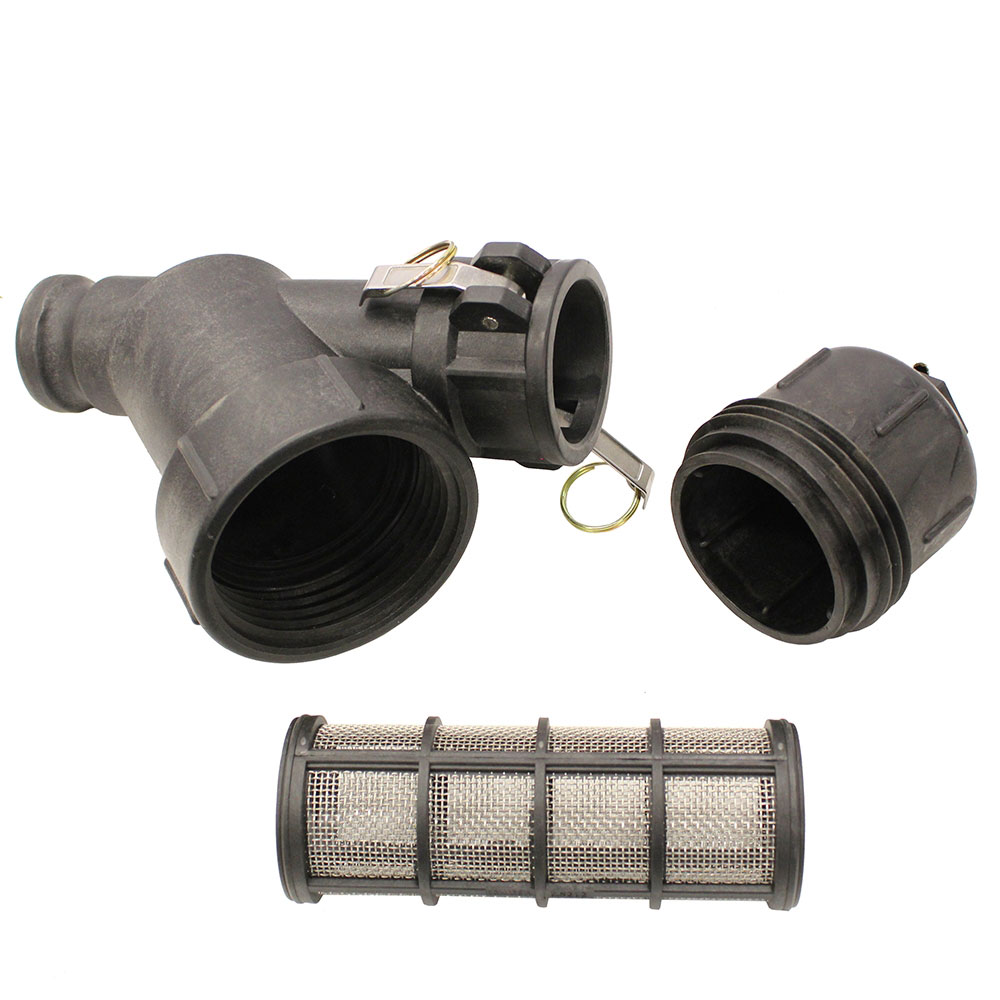

Built for heavy daily use, the AK230 Pro gives you everything you need right out of the crate. From the 6’ spray wand with swivel, to the mountable hose reel and maintenance kit, this is a full-service machine for serious sealcoating. The quick-connect camlocks make changing components a breeze. The filter kit keeps your spray lines clean. And the recirculation system (165 GPM) keeps your sealer perfectly mixed, no paddle required. Get Contractor-Grade Efficiency

• Spray pressure: 45 PSI at the tip
• Agitation system recirculates at 165 GPM
• Fast and clean operation on every job

Works With Water-Based Sealers

• Compatible with water-based or acrylic sealer
• Not for use with oil-based or sand-filled sealers
• Delivers a smooth, even finish without streaking

Specs – AK230 Pro Sealcoat Sprayer

• Tank Capacity: 230 gallons
• Tank Material: 11-gauge powder-coated steel
• Engine: Honda GX160 5.5HP, 4-stroke
• Pump: 2” Cast Iron Centrifugal with Viton/Tungsten seals
• Spray Pressure: 45 PSI
• Agitation: Pump recirculation at 165 GPM
• Spray Hose: 50’ x ¾”, 275 PSI rated
• Spray Wand: 6’ ball valve gun with swivel
• Spray Tips: 2GPM, 3GPM, 4GPM (quick-connect)

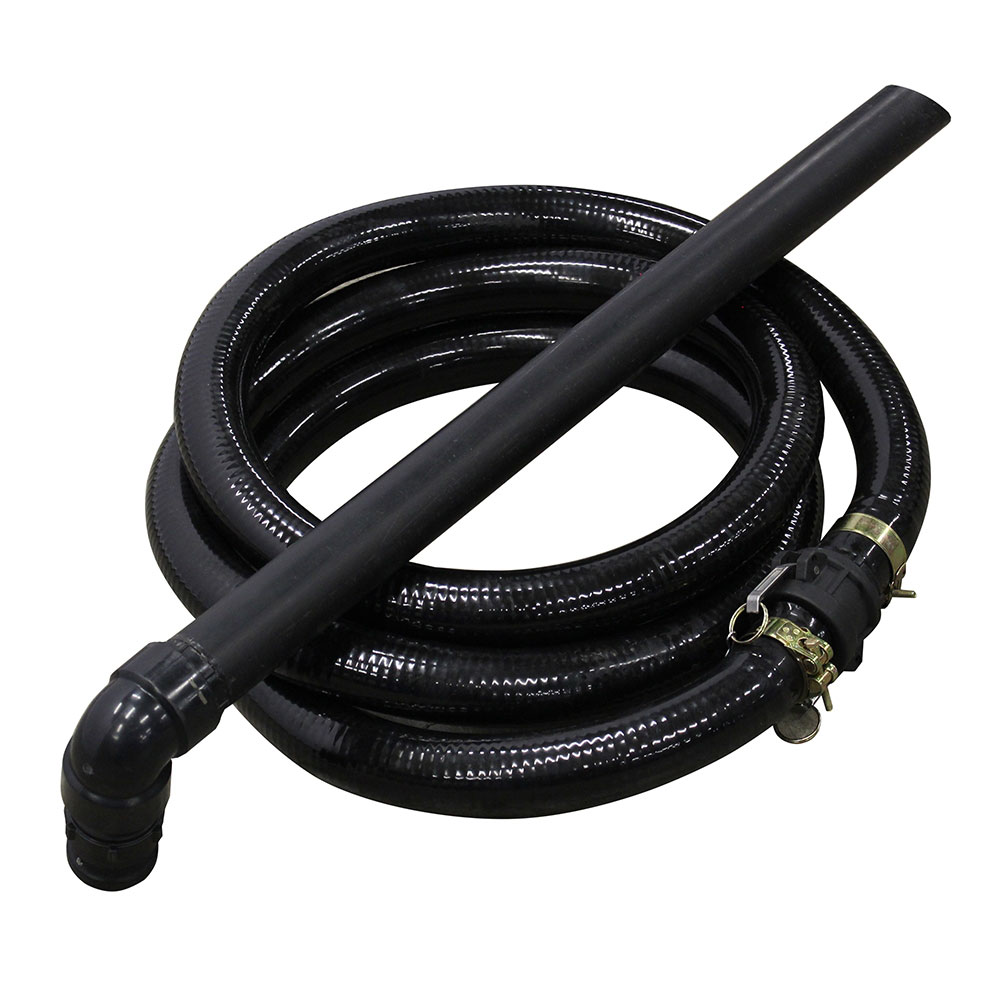

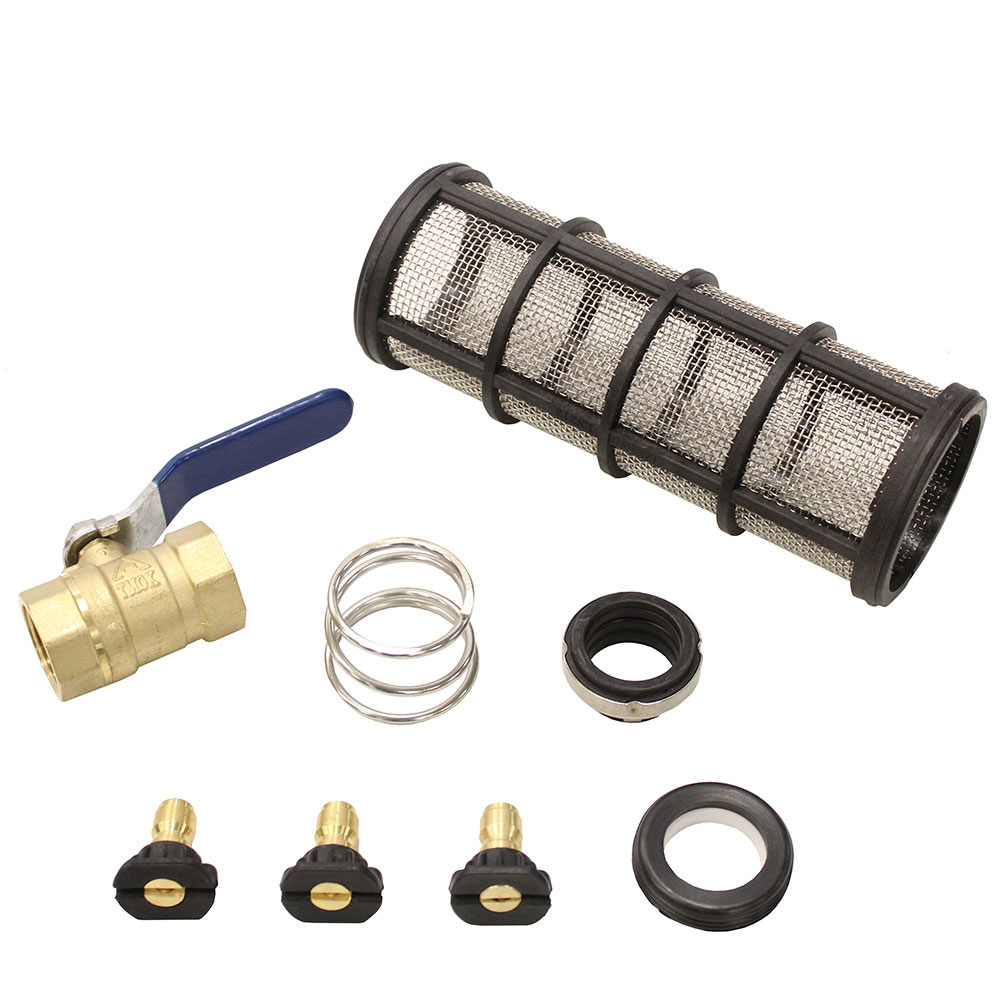

• Upgrades Included: Hose reel, transfer kit, filter kit, maintenance kit
• Dimensions (L x W x H): 48" x 48" x 60"
• Shipping Weight: 535 lbs
• Sealer Compatibility: Water-based or acrylic
• Not Compatible With: Sand or oil-based sealers
• Warranty: 1-Year Manufacturer Warranty

Why Contractors Choose the AK230 Pro

You need gear that works as hard as you do—and the AK230 Pro delivers. From tight residential spaces to mid-sized commercial lots, it’s designed to maximize output, speed up setup, and put more money in your pocket every day. If you’re ready to grow, this rig’s ready to go.
